20kva Perkins Diesel Water Cooled Generator Electric Power 16kw Silence Genset 3 Phase

1 SET
MOQ
Negotiation
कीमत
20kva Perkins Diesel Water Cooled Generator Electric Power 16kw Silence Genset 3 Phase
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
Output Power: 16KW 20KVA
Frequency: 50/60HZ
Voltage: 220v - 690v optional
Engine: Perkins
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek for optional
Controller: Deepsea, Smartgen, Harsen for optional
MCCB: ABB or Delixi
Cooling system: Water cooled
Genset type: Open type, Silent type, Container type, Trailer type for optional
ATS: Optional
हाई लाइट:

open type genset

,

water cooled generator

मूलभूत जानकारी
Place of Origin: Jiangsu of China
ब्रांड नाम: GPRO
प्रमाणन: ISO,CE Certification
Model Number: PF-P20
भुगतान & नौवहन नियमों
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
उत्पाद विवरण

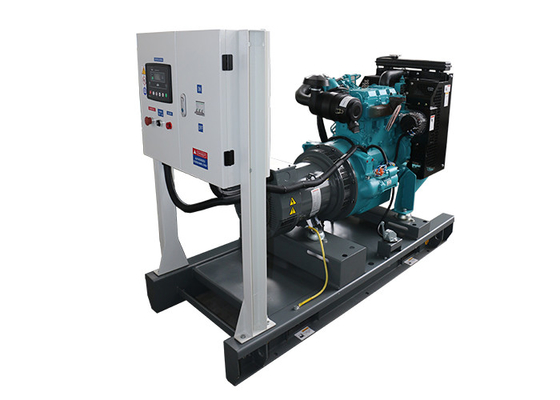

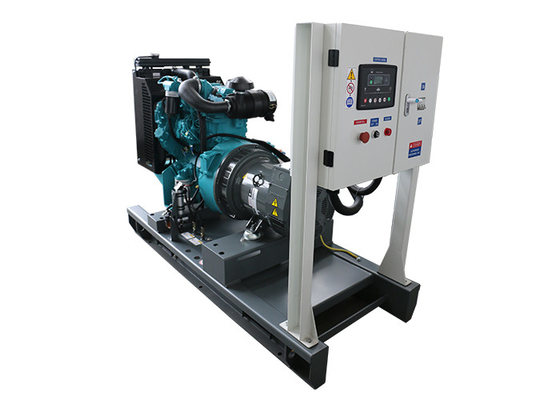

20kva Perkins Diesel Generator Electric Power 16kw Silence Genset 3 phase

Technical Specifications:

Genset Prime Power (kw/kva)  16/ 20
Voltage Recovery Time ≤1S
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 12V 100Ah
Soundproof Type- Dimension (L*W*H) (mm) 1800*750*1120
Soundproof Type-Weight (kg) 1080
Engine Engine brand/ model Perkins  404A-22G
Output Power (kw)  20
Cylinder No. & Config. 4, in-line
Combustion System Indirect injection
Engine Speed (r/min) 1500
Speed Governing Mechanical
Starting System 12V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Alternator Alternator brand Stamford, Mecc-alte,Faraday…
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%~105%
Protection Grade IP23
 Heavy duty world class brand  industrial diesel engine:

a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards




ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional.







 Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets.

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours

. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
. Spare-parts can also be sent by air express.


If have any questions, please contact us. Your inquiry would be appreciated.
