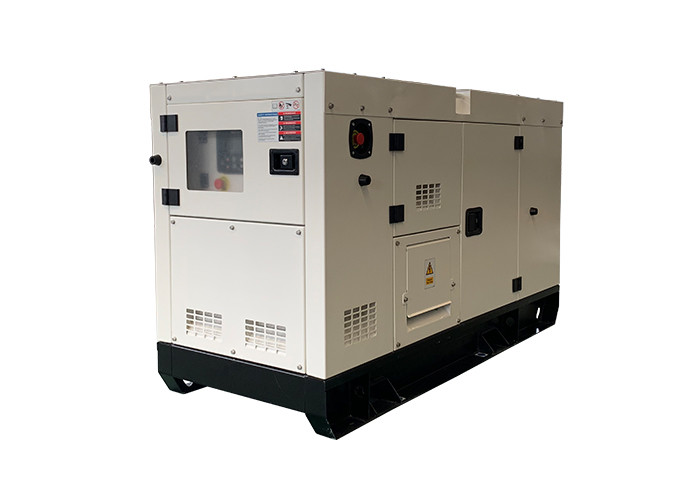

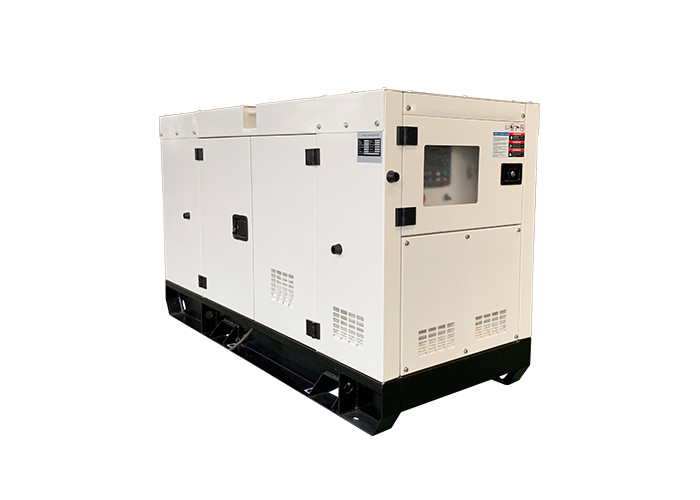

20kw USA Cummins Electric Genset Standby Application Power Diesel Generator 50hz/60hz

1 SET
MOQ
Negotiation
कीमत
20kw USA Cummins Electric Genset Standby Application Power Diesel Generator 50hz/60hz
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
Output Power: 20KW 25KVA
Frequency: 50/60HZ
Voltage: 220v - 690v optional
Engine: Cummins, Perkins, Deutz, Iveco, Chinese brand for optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek for optional
Controller: Deepsea, Smartgen, Harsen for optional
MCCB: ABB or Delixi
Cooling system: Water cooled
Genset type: Open type, Silent type, Container type, Trailer type for optional
ATS: Optional
हाई लाइट:

cummins diesel genset

,

आपातकालीन डीजल जनरेटर

मूलभूत जानकारी
Place of Origin: Jiangsu of China
ब्रांड नाम: GPRO
प्रमाणन: ISO,CE Certification
Model Number: PF-DC28S
भुगतान & नौवहन नियमों
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
उत्पाद विवरण

20kw USA Cummins electric genset standby application power diesel generator 50hz/60hz

Model PF-DC28S
Rated output(KW) 20kw/25kva
Max.output(KVA)  22kw/28kva
Frequency(HZ) 50
Rated voltage(V) 230/400
Rated current(A) 54.1
Engine Model Cummins 4B3.9-G1
Cylinder number 4
bore*stroke(mm) 100*115
Fuel consumption(g/kw.h)at full load 230
Compression ratio 19:01
Starting system Electric starter
Rated Rotation Speed(rpm) 1500
Power factor Cos% 0.8
Insulation grade H
Excitation mode self-excitation and cinstant voltage(AVR)
Diamension(L*W*H) 2190*1050*1340
net weight(KG) 1000



20kw USA Cummins Electric Genset Standby Application Power Diesel Generator 50hz/60hz 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional

20kw USA Cummins Electric Genset Standby Application Power Diesel Generator 50hz/60hz 1



20kw USA Cummins Electric Genset Standby Application Power Diesel Generator 50hz/60hz 2

Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!
