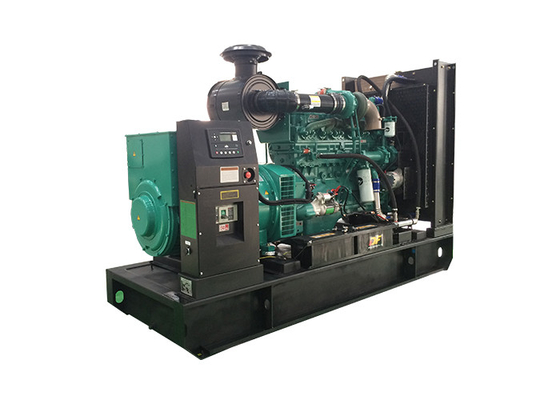

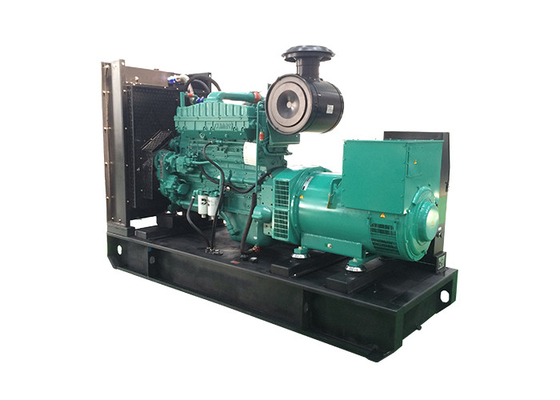

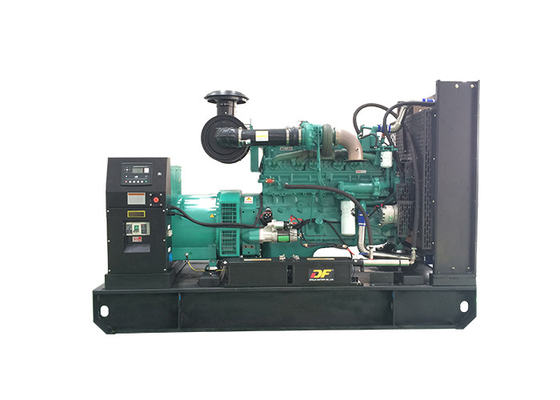

220kw Industrial Genset Open Type Cummins Diesel Generators 220v - 690v optional

1 SET
MOQ
Negotiation
कीमत
220kw Industrial Genset Open Type Cummins Diesel Generators 220v - 690v optional
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
Output Power: 220KW 275KVA
Frequency: 50/60HZ
Voltage: 220v - 690v optional
Engine: Cummins, Perkins, Deutz, Iveco, Chinese brand for optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek for optional
Controller: Deepsea, Smartgen, Harsen for optional
MCCB: ABB or Delixi
Cooling system: Water cooled
Genset type: Open type, Silent type, Container type, Trailer type for optional
ATS: Optional
हाई लाइट:

Cummins विद्युत जनरेटर

,

आपातकालीन डीजल जनरेटर

मूलभूत जानकारी
Place of Origin: Jiangsu of China
ब्रांड नाम: GPRO
प्रमाणन: ISO,CE Certification
Model Number: PF-CC312
भुगतान & नौवहन नियमों
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
उत्पाद विवरण

220kw Industrial Genset Open Type Generator Low Price Cummins Diesel Generator



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-CCS312
1.2 Prime at 50HZ, 40℃ ambient 220KW 275KVA
1.3 Standby at 50HZ, 40℃ ambient 250KW 312KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 4500×1440×2100mm
1.7 Weight 4555kg
1.8 Fuel consumption 100% prime load 70L/h
1.9 Total heat radiated to ambient 66KW
1.10 Noise Level at 7m (Normal/Super) 75/70dB
1.11 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Cummins
2.2 Engine Model NTA855-G1A
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged/Aftercooled
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 140×152 mm
2.11 Compression ratio 14.5:1
2.12 Displacement 14L
2.13 Engine Prime Power at 1500rpm 261KWm
2.14 Engine Standby Power at 1500rpm 291KWm
2.15 Battery capacity 127A/hr
2.16 Starting/Min temperature 7℃
2.17 Lubrication oil capacity 36.7L
2.18 Coolant capacity - radiator and engine (40℃) 49L
2.19 Exhaust temp - full load prime 450℃
2.20 Exhaust gas flow - full load prime 3500m3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃ ambient) 6.8 m 3/s
2.23 Pusher fan head (duct allowance) 40℃ 13mmH 2O
2.24 Air intake - engine- full load prime 1206m3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.28 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model Stamford/HC1444D
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 433.0A
3.12 Efficiency 0.93
3.13 Insulation class H
3.14 Protection class IP21
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 915.5kg



Heavy duty world class brand  industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards


220kw Industrial Genset Open Type Cummins Diesel Generators 220v - 690v optional 0



ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



220kw Industrial Genset Open Type Cummins Diesel Generators 220v - 690v optional 1



220kw Industrial Genset Open Type Cummins Diesel Generators 220v - 690v optional 2



Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!
